Multiplex Merlin Tuning Power Set

High-performance power set for the Multiplex Merlin, specially tuned by Multiplex to provide the best balance of speed and climb-rate using the included 7"x4" and 8"x5" folding propeller blades.

Current draw with a 3s Li-Po and the included 7×4 blades is approximately 5.5A. Current drain with a 3s Li-Po on the included 8×5 folding propeller blades is approximately 7.5A.

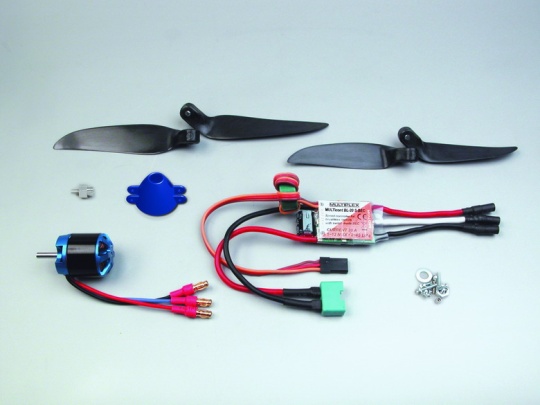

The box includes the following components: -

• 1 x Himax C2212-1180 brushless motor (333006)
• 1 x MULTIcont BL-20 S-BEC speed controller (72288)
• 2 × 7"x4" folding propeller blades (733192)
• 2 × 8"x5" folding propeller blades (733193)
• 1 × 33mm spinner, blade holder and driver for 3mm shafts (733503)

The recommended battery is a 3-cell/11.1V Li-Po with a capacity of 450mAh. The Multiplex battery matched to this power set is Li-BATT BX 3/1-450 (M6) with part number 157104.
