Parallel Balance Board - Deans + JST-XH

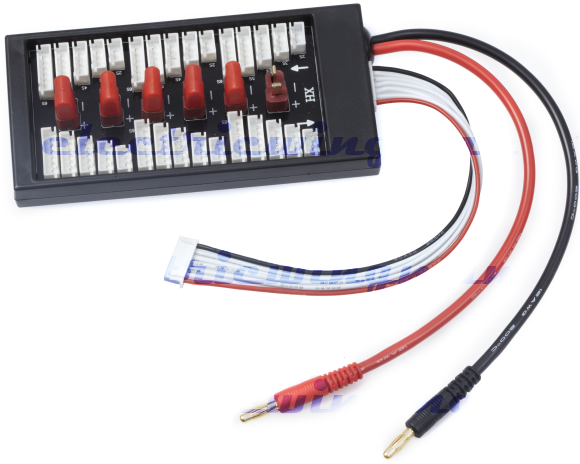

Parallel balance/charging board for 2-6s lithium polymer batteries with Deans Ultra Connectors (Or replica T-Connectors) and JST-XH type balance connectors. You can use the parallel balance board to vastly reduce your charging time. For example if you have 3 of 2,200mAh 3s Li-Po batteries which you usually charge at 1C (2.2A), this would usually take approximately 3 hours to charge each pack individually. With this balance board you can charge all three packs in about one hour*.

This parallel balance board can be used to parallel charge and balance up to 6 lithium polymer batteries of the same cell count. We recommend that all cells should be within 0.1V of each other.

Caps are included to cover un-used connectors during use.

The balance connector from the board is a 6s JST-XH type.
The charging lead from the board is 4mm banana plugs.

Maximum throughput, 30A.

General do's and dont's for use: -

• Do not mix cell counts (i.e. do not try to parallel charge a 3s and 4s pack)
• Do ensure that all cells are within 0.1V of each other before connecting
• Do use the T-connector caps to cover exposed/un-used connectors on the board during use.
• Do connect the main charge leads of the packs to the board before connecting the balance leads.

*Assumes your charger is capable of charging at 6.6Ah and is an illustration of usage only.
