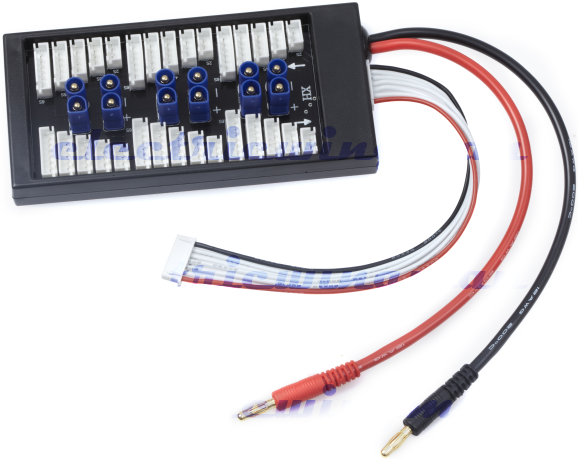

Parallel balance/charging board for 2-6s lithium polymer batteries with EC3 connectors and JST-XH type balance connectors. You can use the parallel balance board to vastly reduce your charging time. For example if you have 3 of 2,200mAh 3s Li-Po batteries which you usually charge at 1C (2.2A), this would usually take approximately 3 hours to charge each pack individually. With this balance board you can charge all three packs in about one hour*.
This parallel balance board can be used to parallel charge and balance up to 6 lithium polymer batteries of the same cell count. We recommend that all cells should be within 0.1V of each other.
The balance connector from the board is a 6s JST-XH type. The board has standard 4mm charge leads, which should fit most chargers.
Maximum throughput, 30A.
General do's and dont's for use: -
- Do not mix cell counts (i.e. do not try to parallel charge a 3s and 4s pack)
- Do ensure that all cells are within 0.1V of each other before connecting
- Do connect the main charge leads of the packs to the board before connecting the balance leads.
*Assumes your charger is capable of charging at 6.6Ah and is an illustration of usage only.
