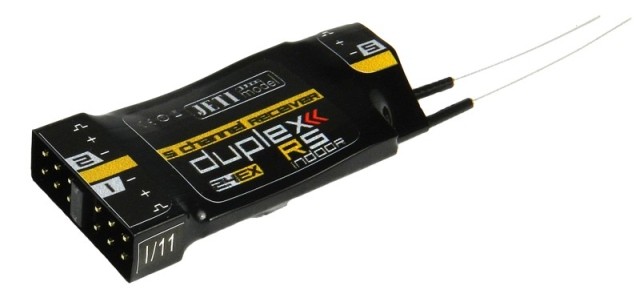

Jeti Duplex 2.4EX R5 Indoor Receiver

JD-R5i

Click to enlarge image

The Jeti Duplex 2.4EX R5 Indoor Receiver is a 5 channel light-weight receiver designed for indoor models operating on the 2.4GHz frequency.

This unit weighs 5.2 grams and offers realtime transmission of data from Jeti Duplex telemetric sensors and programming via the Jeti Box.

The R5 indoor is compatible with all Jeti Duplex sensors and like all Duplex receivers, transmits its voltage for realtime feedback.

Made in Czech Republic.

Technical Details for Jeti Duplex 2.4EX R5 Indoor Receiver

Dimensions (mm)	44x20x7
Antennae Count	2
Antennae Length	45.00mm (1.77")
Channel Outputs	5
Temperature Range min. (°C)	-10
*Jeti Box Compatible (JBC)*	Yes
Temperature Range max. (°C)	85
Supply Voltage min.	3.2V
Supply Voltage max.	8.4V
Average Current (mA)	39
Transmission of Telemetric Data	Yes
Satellite receiver support	No
Power output (dBm)	6
Receiver Sensitivity (dBm)	-98
Weight	5.0g (0.2oz.)
