Multiplex Watt Meter

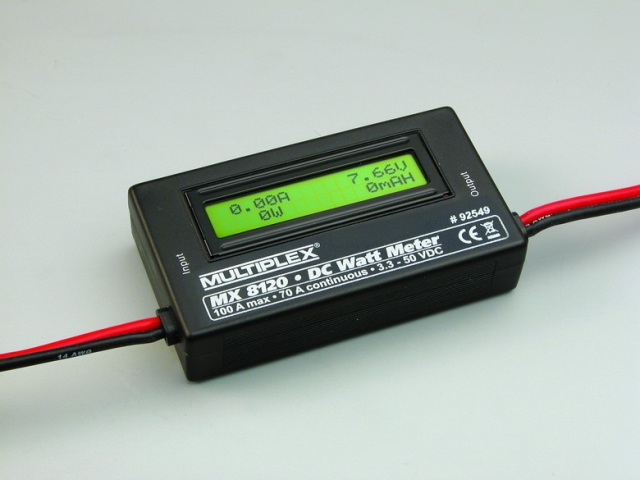

A watt meter is the perfect companion for any electric flyer, a vital component of your flight box – or the boot of your car! The 2-line LCD screen of the Multiplex DC Watt Meter provides a constant read-out of volts, amps and watts as well as the cumulative mAh capacity drawn from the power source.

The Multiplex Watt Meter does not require a separate power-source, but takes the required power from the power source of the drive train being tested. Simply connect between battery and speed controller.

Common uses of the Multiplex Watt Meter MX 8120: -

• Testing electric power setups by connecting between the battery and speed controller.
• Monitoring battery charge/discharge by connecting between the battery and charger.

Specification: -
Current range: 0.01A to 70A
Maximum current (10 seconds): 100A
Voltage range: 3.3V to 50V DC
Power resolution: 1W
Capacity resolution: 1mAh
Dimensions: 101×57x24mm
Weight: 100g (3.53oz)
