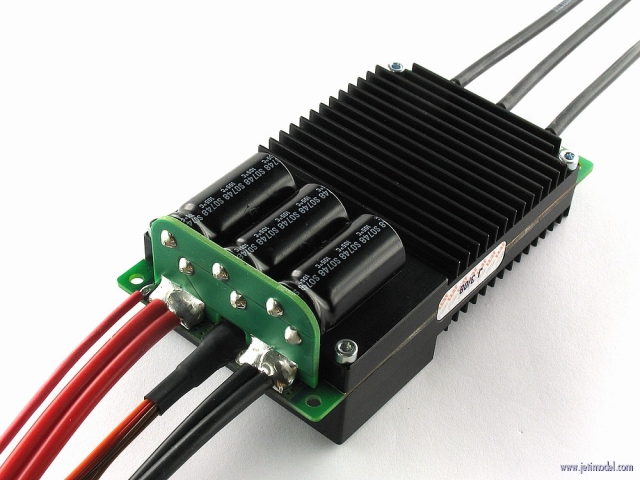

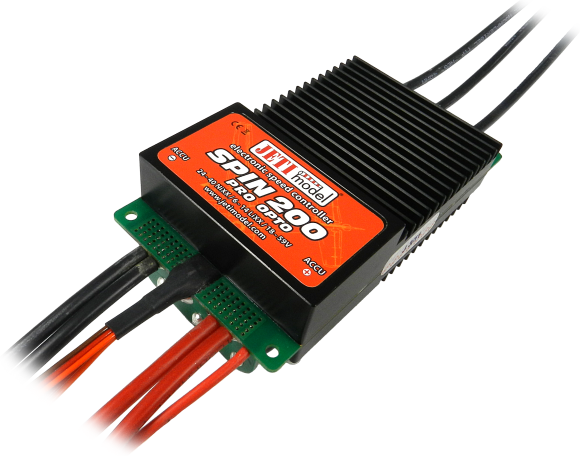

The Jeti Spin Pro 200 opto electronic speed control for brushless motors extends the Spin range with another high voltage controller. This unit is opto type (does not contain a BEC) and has galvanically separated input and output, therefore it is necessary to use an independent power supply for your receiver and servos, such as a regulated 2s Li-Po or a 2s A123 pack.
Jeti Spin Pro controllers are now Duplex compatible, and will feed the current motor power (as a percentage), RPM, temperature and voltage through the data port of your Duplex receiver.
The Spin Pro 200 features an anti-spark connecting wire. When connecting the controller to your flight battery pack, first connect the negative/black wires, followed by the small red anti-spark wire and finally the thicker positive/red wires.
The Spin 200 controllers offer two JR connectors. The connector with the black plug should be connected to your receiver. The connector with the red plug allows the Jeti Box to be connected for programming or data read-outs, without unplugging the controller from your receiver. Please note that the receiver power-supply should be disconnected for this purpose.
Please ensure the speed controller settings are correct for your motor before running. For all AXi motors, use the preset "Acro outrunner".
24-month warranty provided by Jeti. Model Motors approved.
Made in Czech Republic.
Find bushless ESCs similar to Jeti Spin Pro 200 Opto
|Jeti Spin Pro 200 Opto (This ESC)
||No BEC (Opto)
|ZTW Mantis 150A Opto ESC - HV
Technical Details for Jeti Spin Pro 200 Opto
|No. of cells (LiPo)||6-14|
|No. of cells (LiFe)|
|No. of cells (NiXX)||24-40|
|Max. continuous current||170.0A|
|Dimensions (x,y,z in mm)||63x120x27|
|Continuous BEC Current||0.0A|
|Max BEC Current||0.0A|
|Jeti Box Compatible (JBC)||Yes|
|BEC Type||No BEC (Opto)|
