Name: AXi 2808/24 v2
Brand: Model Motors
SKU: 4384
Price: 59.95 GBP
Availability: OutOfStock

Recently viewed items: -
- AXi 2808/24 v2
We offer International Express Shipping with DHL Express
SAME DAY DESPATCH Order before 3pm Monday-Friday for same day shipping

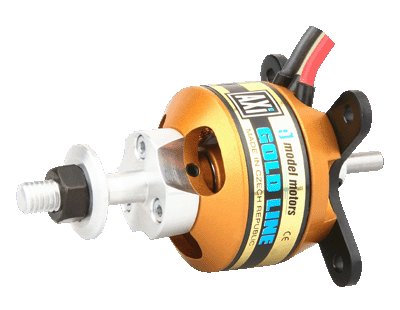

The Model Motors AXi 2808/24 v2 brushless outrunner, now upgraded with improved thermal dynamics, better balance and now including the radial mount set in the box with prop adaptors for front and reverse motor mounting! The AXi 2808/24 is one of our favourite motors for small, fast models up to 1kg or powered gliders up to 1.3kg. The 2808/24 is also suited to 3D models up to 800g, again on 3s.

The 2808/24 is a 1190kV outrunner with a current capacity of 23A. This motor is ultimately designed around 3s packs to provide up to 232W of power.

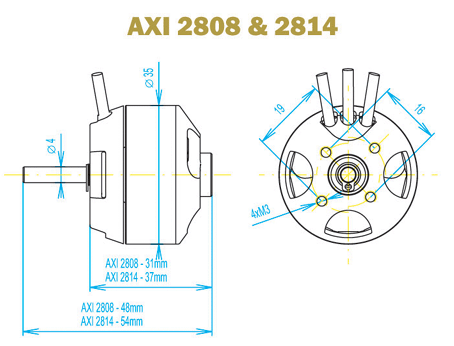

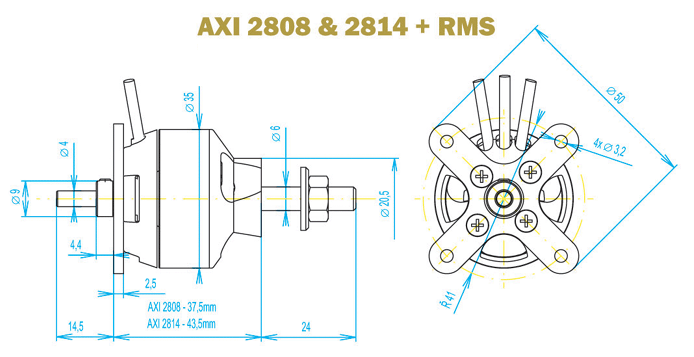

See the power setups tab for detailed setup information. Refer to the images above for full dimensions and measurements.

Made in Czech Republic.

Other AXi motors in this series: AXi 2808/16, AXi 2808/16 v2, AXi 2808/20 v2, AXi 2808/24 Cyclone

Recommended brushless power setups for AXi 2808/24 v2.
Need help finding a brushless motor setup? Try our motor calculator tool.

Model	Model Weight	Cells	Max. Current	ESC	Propeller
Trainer	1000g (35.3oz)	3s	22.0A/60s	Hobbywing FlyFun v5 ESCs 30A 2-4s	9" x 5"
3D	800g (28.2oz)	3s	22.0A/60s	Hobbywing FlyFun v5 ESCs 30A 2-4s	10" x 4.70"
Sailplane	1300g (45.9oz)	3s	22.0A/60s	Hobbywing FlyFun v5 ESCs 30A 2-4s	9" x 5"

Do not exceed the recommended propeller sizes.

Technical Details for AXi 2808/24 v2

*No. of cells (LiPo)*	2-3
RPM/V	1190 Kv
Max. Efficiency	84%
No load current	1.0A
Maximum Load	23.0A
Internal Resistance	0.115Ω
Diameter	35.00mm (1.38")
Length	31.00mm (1.22")
Shaft Diameter	5.00mm (0.20")
Max. Efficiency Current	6-15A (>75%)
Glow Equivalent	2.5ccm/.15 2-stroke/.22 4--stroke
Weight	76.0g (2.7oz.)
