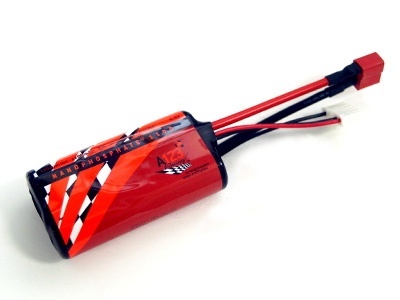

Now with JR connector and Deans. 2-cell A123 battery pack, built using A123 Systems LiFePO4 cells. This pack has a nominal voltage of 6.6V and has a Deans Ultra plug already fitted along with a JST-XH type balance tap plug.
The total weight of the pack is 95 grams and the continuous current capability is 33 amps.
We also stock the popular 2-cell 2500mAh A123 Battery Pack.
Nominal pack voltage: 6.6V (3.3V per cell)
Fully-charged pack voltage: 7.2V (3.6V per cell)
Recommended cut-off voltage: 5V (2.5V per cell)
Minimum voltage: 4.0V (2.0V per cell)
Do not charge above 7.2V.
Please refer to the specification tab above for weight and dimensions of this battery.
Important information about lithium battery shipping: Batteries are prohibited on all airmail services, DHL International Express services and all Royal Mail services (Click here for Royal Mail information). Batteries below 100Wh and where individual cells are below 20Wh, can be shipped by DHL Economy within Europe where the option is available in your basket. Within the UK, batteries can be shipped using DHL Domestic Express service. Please choose the appropriate option during checkout. If in doubt, please ask us first!
Technical Details for 2s 1100mAh A123 Battery Pack - Deans
Capacity (mAh) | 1100 |
Dimensions (mm) | 70x20x38 |
Pack Configuration | 2S1P |
Balance Plug | Yes |
Balance Plug Type | JST-XH |
Continuous Discharge (C) | 30.0C |
Continuous Current (A) | 33.0A |
Burst Discharge (C) | 60.0C |
Burst Current (A) | 66.0A |
Maximum Charge Rate (C) | 4.3C |
Maximum Charge Rate (A) | 4.5A |
Chemistry | LiFePO4 |
Discharge Plug | Yes |
Watt-Hours | 7.26 |
Weight | 95.0g (3.4oz.) |
