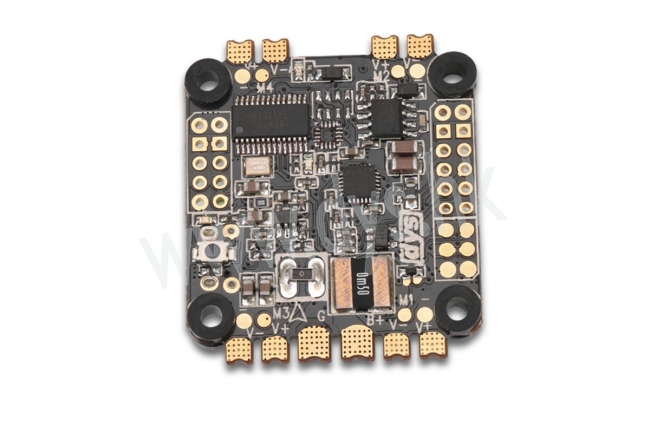

DYS F4 Pro Flight Controller with OSD + PDB

F4 flight controller from DYS with integrated OSD and power distribution featuring the Omnibus F4 firmware and a 5V BEC with up to 3A output. This is a light-weight FC board with a powerful onboard regulator and built-in on-screen display and current meter. This is a cracking flight controller with great features at a reasonable price and really puts DYS on the map.

Also worth checking out the HGLRC F4 V5 Pro, which is a similar FC with integrated video transmitter.

Features: -

• Master STM32F405 GRT6, refresh rate up to 8K
• PCB 3OZ copper enhance current stability and cooling fast
• 5V/3A BEC output
• Exposed pads for easy soldering
• Compatible with all ESCs
• Integrated OSD, no need to flash firmware additionally, debug OSD via BF ground station.
• Integrated current meter to monitor the real-time power consumption
• Adjust the PID by OSD via remote control
• Adjust the VTX via open ports such as power, frequency band, frequency point (Note: The VTX should have this function like the TBS one and the upcoming DYS VTX)
• DYS F4 flight control with 4 damping balls to reduce vibration
• 2-6s Li-Po support
• Net weight is 11.2g (excluding wires)

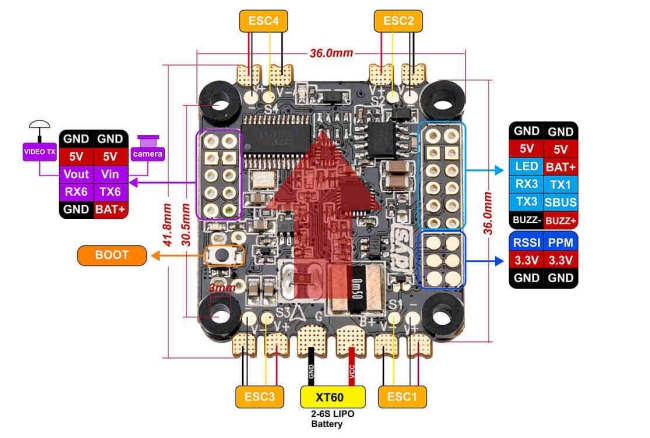

• Size: 42×36mm with 30.5×30.5mm mounting pattern
• Gyro: MPU6000

Please test using the USB port prior to soldering as soldered boards will not be accepted for return.

Made in China.
