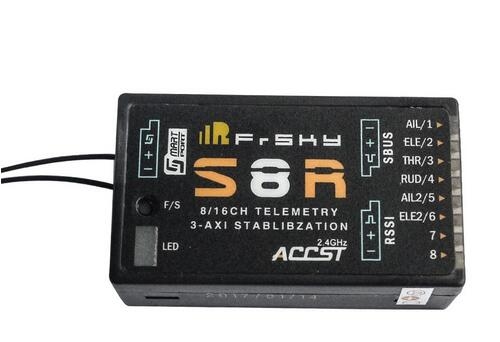

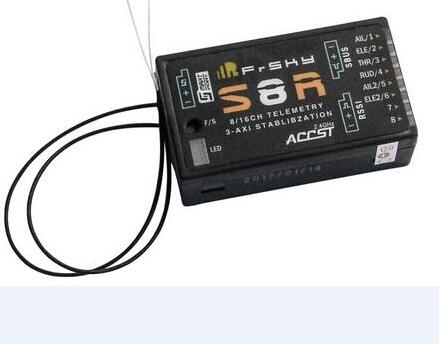

The S8R is an 8-channel receiver with integrated 3-axis stabilisation. For conventional fixed-wing and glider models it supports stabilisation, automatic leveling, hover and knife-edge flight modes; for delta wings or flying wings and v-tail models it supports stabilisation and automatic level flight modes. You can edit the type of model and manipulate all these features via the S8R.Config or S8R.lua. The S8R can also be used as a standard 8 channel X series receiver if required.

S8R features: -

  • Built-in RSSI PWM output (0-3.3V)
  • Built-in battery voltage detection
  • Built-in 3-axis gyroscope and 3-axis accelerometer sensor module
  • Smart Port enabled
  • SBUS Port enabled

If you don't need 8 channels, the S8R has a little brother, the S6R.

Specification

CompatibilityFrSky Taranis X9D Plus/X9E/X7/Horus X12S/XJT in D16 mode
S8R-EU only works with FrSky Taranis X9D Plus/X9E/X7/Horus X12S/XJT in D16-EU mode
Firmware UpgradableYes
Dimensions46.47×26.78×14.12mm (L×W×H)
Weight14g
Operating RangeFull range
Operating voltage4.0-10V DC
Operating current120mA@5V
Number of channels8/16CH (1-8ch from conventional channel outputs, 1-16ch from SBUS output)
RSSIWith RSSI PWM output on board: PWM voltage output(0-3.3V), 100Hz, 1500±500us
Measurement RangeGyroscope measurement range: ±2000dps
Accelerometer measurement range: ±4g

Made in China.

Technical Details for FrSky S8R Receiver (EU)

Weight14.0g (0.5oz.)
