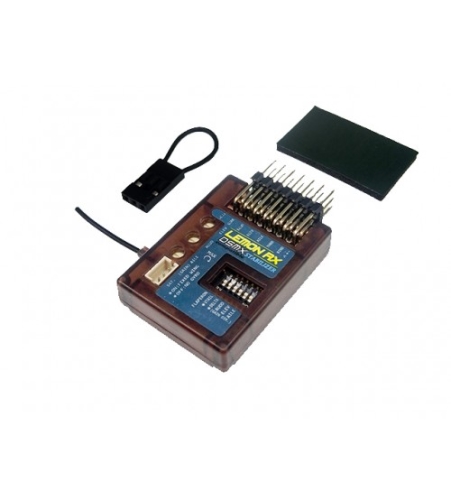

Lemon Rx DSMX Compatible 7-Channel (End-Pin) Stabilizer

A DSMX compatible 7-channel receiver and flight stabiliser.

Highlights: -

• 7-Channel receiver when stabilizer is disabled. (AUX2 located at bind position)
• Supports Flaperon by switching J6 to on position while setting the Spektrum transmitter wing type as Flaperon
• Gear channel for remote stabilizer on/off
• Remote master gain on-the-fly adjustment on AUX3.

Using the stabilizer as 7-Channel Receiver: -

• Turn off J1 to J6
• Follow normal binding procedure by inserting bind plug to the bind location and enable binding on transmitter
• Bind location will become the 7th channel. Use ESC with BEC on throttle channel for supplying power to servos/rx

Note:
1) This is not a Spektrum DSMX or DSM2 product, nor is it a copy of a Spektrum DSM2 or DSMX product. The Spektrum, DSMX and DSM2 brand is a trademark of Horizon Hobby, Inc.
2) This is not an underground black market fake Spektrum product. Lemon Rx quality is guaranteed.
3) Lemon Rx products are tested to be compatible with Spektrum DSMX and or DSM2 product (Spektrum, DSMX and DSM2 are registered trademarks of Horizon Hobby, Inc.).
