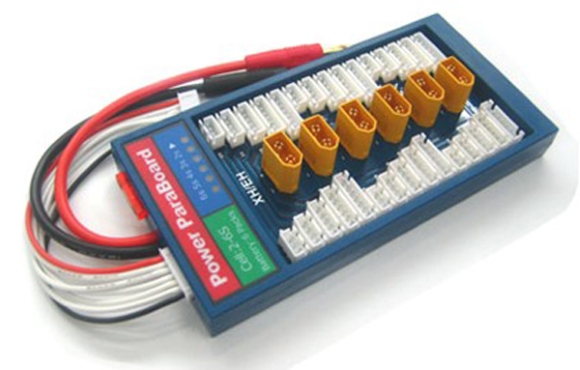

Parallel balance/charging board for 2-6s lithium polymer batteries with XT60 Connectors and JST-XH type balance connectors. You can use the parallel balance board to vastly reduce your charging time. For example if you have 3 of 2,200mAh 3s Li-Po batteries which you usually charge at 1C (2.2A), this would usually take approximately 3 hours to charge each pack individually. With this balance board you can charge all three packs in about one hour*.

This parallel balance board can be used to parallel charge and balance up to 6 lithium polymer batteries of the same cell count. We recommend that all cells should be within 0.1V of each other.

The balance connector from the board is a 6s JST-XH type.
The charging lead from the board is standard 4mm charge leads, which should fit most chargers.

Maximum throughput, 40A. This board is fused.

General do's and dont's for use: -

  • Do not mix cell counts (i.e. do not try to parallel charge a 3s and 4s pack)
  • Do ensure that all cells are within 0.1V of each other before connecting
  • Do connect the main charge leads of the packs to the board before connecting the balance leads.

*Assumes your charger is capable of charging at 6.6Ah and is an illustration of usage only.

$15.04
$18.04 inc. VAT
Based on base price of £13.95 inc. VAT
in stock
Add to basket
Total shipping price if this item is added from $8.56 to $22.75
