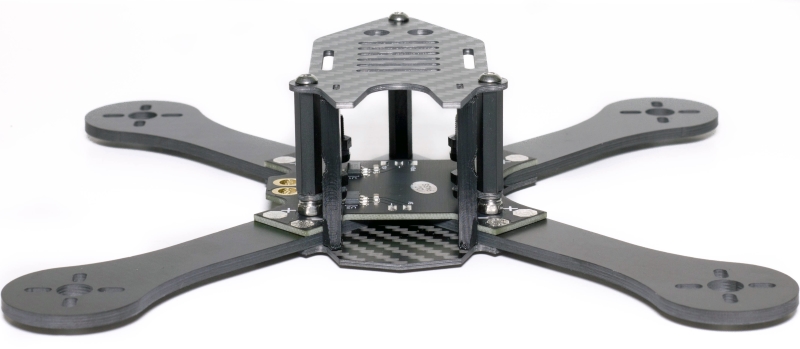

The new TSX200 is smaller, lighter and more agile than the previous TSX. But don't let this fool you, the design still allows you to fit your electronics with ease. The included power distribution board has two filtered linear regulators. The 5V regulator will power the flight controller and receiver, while the 12V regulator will power your vtx and camera. Cut from high-quality matte carbon twill sheet – 1.5mm for the main frame plates and 3mm arms. The diagonal motor to motor distance of 200mm allows props up to 5" in diameter. So with the right setup the TSX is a real beast!
The 200 incorporates a unique design that requires only a single bolt per arm, greatly improving the strength and simplicity of the frame. This also allows flight controllers to be mounted separately from the standoffs, which allows soft-mounting.
As piloted by World Champion, Mr Bannister, at the DR1 Invitational event in LA.
TSX-200 (3mm arms) Specification: -
- Size: 200mm
- Weight: 78g (3mm arms)
- Max prop size: 5"
- PDB: 3oz copper with 5v and 12v regulators
- Standoffs: Nylon
- Carbon finish: Matte Twill
Technical Details for Stanton Frames TSX200 (3mm)
Unbeatable
By Cheredanine
You want a racing quad then this is the way to go, simple, light and agile. With the right components this frame is unbeatable.
