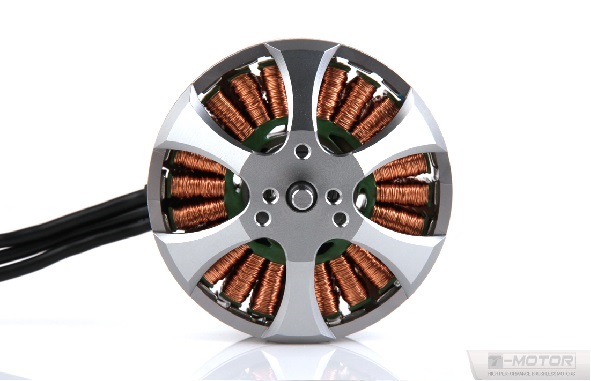

The latest T-Motor MN5212 is a light-weight brushless motor offering 2-2.5kg thrust for multicopters, designed for operation on 6s with 17-18" propellers and supporting quadcopters up to 10kg, hexacopter up to 15kg and octocopter between 16-20kg. The neat, tight windings of the MN5212 are exposed to increased airflow thanks to the unique cooling design of these new motors, keeping everything operating efficiently.

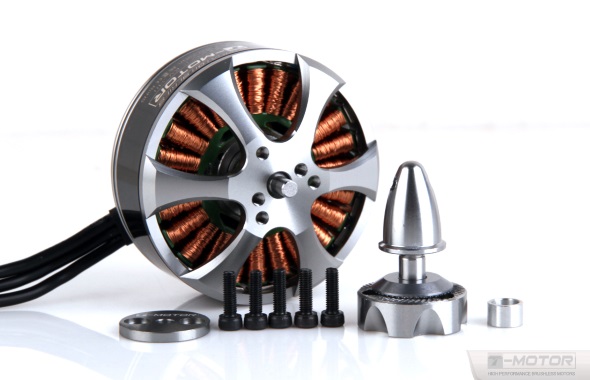

An M6 prop adaptor is included along with the usual T-Motor carbon prop cover for mounting the 17-18" carbon fibre propellers where maximum performance is required. A 6mm to 8mm bush is also included should you wish to mount propellers with an 8mm bore.

Recommended brushless power setups for T-Motor MN5212 340kv.
Need help finding a brushless motor setup? Try our motor calculator tool.

Model Model Weight Cells Max. Current ESC Propeller
Quadcopter 650mm 8000g (282.2oz) 6s 35.0A/180s - 17" x 5.80"
Hexacopter 900mm 12000g (423.3oz) 6s 35.0A/180s - 17" x 5.80"

Do not exceed the recommended propeller sizes.

Technical Details for T-Motor MN5212 340kv

No. of cells (LiPo)6
RPM/V340 Kv
Max. Efficiency83%
No load current1.1A
Maximum Load35.0A
Internal Resistance0.069Ω
Diameter59.00mm (2.32")
Length33.00mm (1.30")
Shaft Diameter6.00mm (0.24")
Max. Efficiency Current5-12A > 83%
Glow Equivalent-
Weight205.0g (7.2oz.)
$70.42
$84.50 inc. VAT
Based on base price of £84.50 inc. VAT
temporarily out of stock
