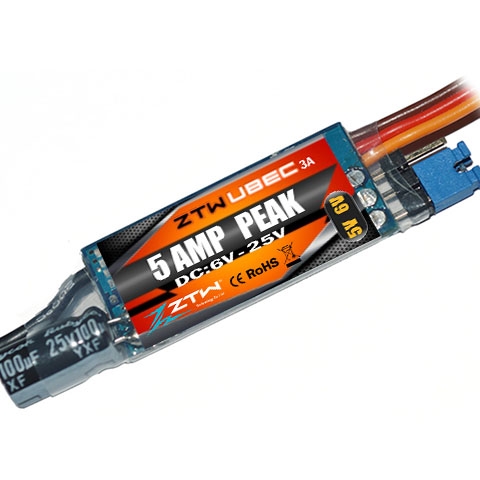

An adjustable output battery eliminator circuit from ZTW designed for 2s-6s input (6-25V DC) and supporting a continuous output of up to 3 amps or short bursts of 5 amps. The output voltage can be set to either 5V or 6V depending on your requirements. This is achieved quite easily using a jumper on the output side.

This UBEC uses a switching regulator to reduce the input voltage to something usable for the servos in your plane. These are useful devices where the number of servos installed is perhaps more than your speed controllers built-in BEC cam handle or you are using an Opto type ESC which has no BEC to provide power to your receiver and servos.

The relatively small dimensions make this is a pretty great all-purpose BEC in small models.

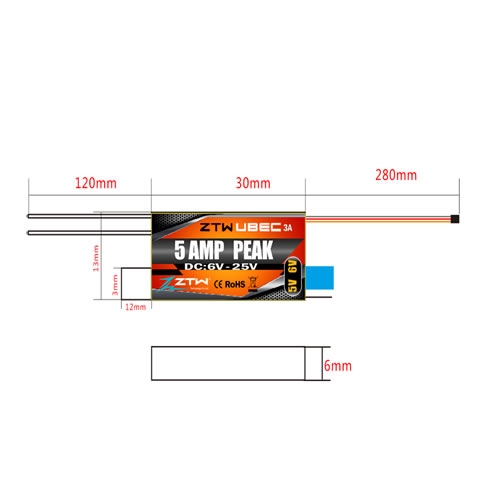

Power wire is 22 AWG (120mm red and 120mm black cable)
Signal wire has a universal JR connector at the end of a 280mm cable (brown, red, orange)

Made in China.

Technical Details for ZTW UBEC 3A/5A For 2-6s

Weight7.0g (0.2oz.)
$7.36
$8.84 inc. VAT
Based on base price of £6.95 inc. VAT
