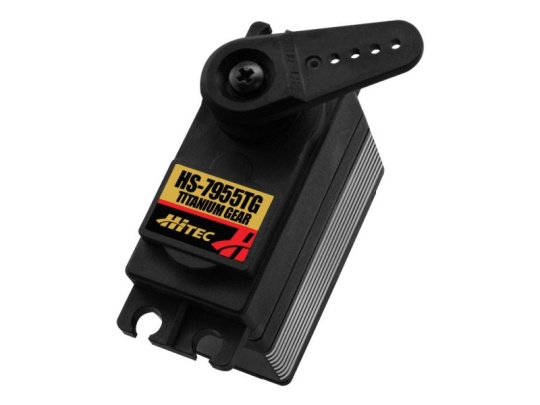

The Hitec HS-7955TG servo is a programmable digital high torque servo designed for the most demanding applications such as large scale RC aeroplanes and trucks. This high tech servo features an enormous 24kg (333 oz) of torque at 6.0V which can only be contained by the rock-solid titanium gear set, hardened steel gear pins and axial brass bushings.
The output shaft is supported by dual ball bearings.
The Hitec HS-7955 servo arrives in a protective plastic case with 5 servo output arms, 4 mounting screws and lugs and a blue metal servo arm.
Full instructions are included.
Hitec RCD, USA offer radio control systems, servos and accessories for all kinds of RC radio controlled models and aeroplanes and we are pleased to offer these popular Hitec servos at the best prices with reliable service.
For full servo specifications, please refer to the specification tab above. A list of similar servos is also shown, where available, and is based on torque values only. All of our servos include standard manufacturers fittings.
Please note, as we buy our servos in bulk, many of the analogue Hitec servos are shipped to us packed like this, individual servos may therefore arrive loose-packed. Please do not grab and rotate servo arms by hand – this is not good for the gears and with todays light-weight servos can easily strip gears. A servo tester is a worthwhile investment.
Technical Details for HS-7955TG Digital Servo
| Torque @ 4.8V (kg·cm) | 18 |
| Torque @ 6.0V (kg·cm) | 24 |
| Torque @ 7.4V (kg·cm) | |
| Speed | 0.19/0.15 |
| Bearing Type | Dual Ball Bearing |
| Motor Type | Coreless |
| Dimensions (mm) | 39.88x19.81x36.83 |
| Weight | 65.0g (2.3oz.) |
