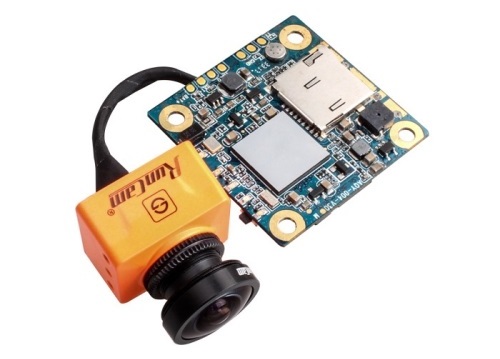

A modular and light-weight FPV camera with WDR, integrated 60fps 1080p HD recording boasting compatibility with a number of flight controllers and weighing only 23 grams including Wi-Fi module!





The Split 2 is born from feedback of the original game-changing Split from RunCam. This is a combined FPV camera for first-person view flying and a HD recording camera. It allows for clean builds by mounting the PCB within your flight stack so as not to upset the centre of mass of your mini quad. Most importantly the weight is still very low at just 23g including the Wi-Fi module. Considering the popular RunCam 2 is about 49 grams and something like a Swift 2 is about 14 grams, that is a 40g saving, which is a considerable percentage of the AuW of your drone in most cases. Our favourite improvement over the v1 is that the SD card slot is now spring loaded with a small safety latch, which is much more secure.

The standard lens included is the GoPro RCG25.

Field of view comparison

FPV FoV (4:3 / 16:9 auto adaptation)
HD recording FoV (16:9)

Brief summary of improvements

  • Now takes 5-17V DC input
  • Much improved SD card slot implementation
  • JST connectors replaced by solder pads (video, power, serial ports)
  • Replaceable GoPro™ lens is default
  • Stronger ribbon cable
  • Better cooling and microphone

Included in the box

  • 1 x Camera
  • 1 x WiFi Module
  • 1 x SD Card Protector
  • 2 x Mounting bracket
  • 1 x Set of screws
  • 1 × 180mm Lens Extension Cable
  • 1 x TV-out and Power USB Cable
  • 1 × 3 pin silicone cable (male)
  • 1 × 3 pin silicone cable (female)
  • 1 x Manual

Specifications

FoV130° FPV FoV (165° recording FoV)
Video Resolution1080p@60fps / 1080p@30fps / 720p@60fps
Video file formatMOV
Image resolution2 Megapixels
TV outputNTSC (720*480) / PAL (720*576) Switchable
Real-Time audio outputYes
InterfaceMicro USB / UART
Maximum SD card size64Gb (Class 10/UHS-I/UHS-II recommended)
WiFi ModuleSupport (removable)
DimensionsPCB 38×38mm / Lens module 22×20mm
Power inputDC 5-17V/DC 5V(USB)
Working current650mAh@5V / 270mAh@12V
Weight23g

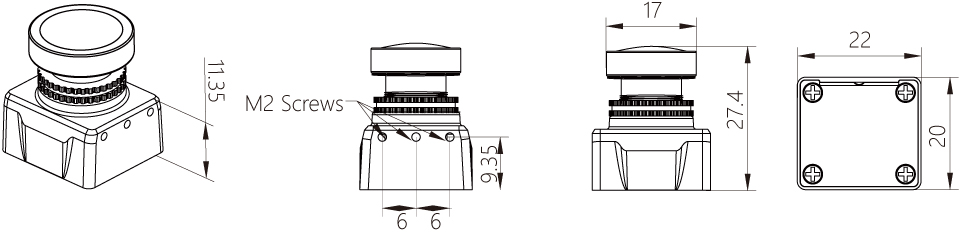

Dimensions

runcam split 2 dimensions

Technical Details for RunCam Split 2 HD Recording FPV Camera

Weight21.0g (0.7oz.)
£64.90
£54.08 ex. VAT     £64.90 inc. VAT
temporarily out of stock
