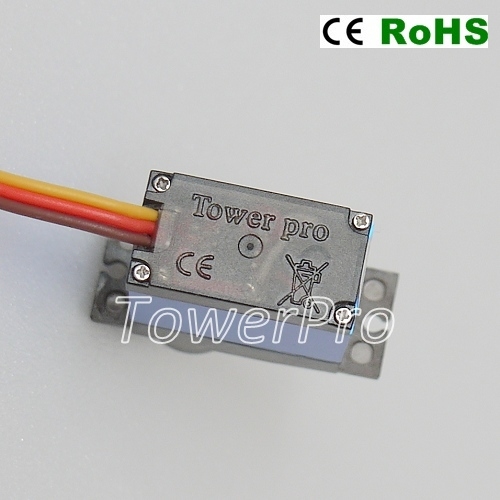

If you're looking for bang-per-buck, look no further than the MG92B digital servo with 6061-T6 aluminium gears and output shaft for maximum longevity. This budget digital mini servo leads the pack when it comes to torquew, boasting up to 3.5kgcm when operated at 6V. It has a universal servo connector compatible with the vast majority of receivers such as those from JR, Futaba, Jeti and FrSky.

We love the MG92B for demanding model aeroplanes such as the Veloxity and Edge 540 XL from RC Factory and Twisted Hobbys. This is an excellent alternative to the Gening D95MG and can give many higher priced servos a good beating in terms of outright performance.

The connecting wire is 250mm in length.

Includes 3 servo arms, 2 mounting screws and a servo arm screw.

For full servo specifications, please refer to the specification tab above. A list of similar servos is also shown, where available, and is based on torque values only. All of our servos include standard manufacturers fittings.

Please note, as we buy our servos in bulk, many of the analogue Hitec servos are shipped to us packed like this, individual servos may therefore arrive loose-packed. Please do not grab and rotate servo arms by hand – this is not good for the gears and with todays light-weight servos can easily strip gears. A servo tester is a worthwhile investment.

Servos similar to the TowerPro MG92B Digital 13.8g Mini Servo

Torque in kg·cm
Servo 4.8V 6.0V 7.4V Weight Price Stock
 TowerPro MG92B Digital 13.8g Mini Servo (This one) 3.10 3.50 - 14.0g $8.68
 TowerPro SG92R Digital 9g Micro Servo 2.50 - - 9.0g $4.31
 HS-311 Standard Economy Servo 3.00 3.70 - 43.0g $7.64
 HS-322 HD Servo 3.00 3.70 - 43.0g $10.86
 HS-81 Servo 2.60 3.00 - 16.4g $11.19
 HS-82MG Servo 2.80 3.40 - 18.7g $15.56
 HS-85MG Servo 3.00 3.50 - 21.8g $21.78
 HS-125MG Thin Wing Servo 3.00 3.50 - 23.8g $26.14
 HS-5085MG Premium Metal Gear Micro Servo 3.60 4.30 - 21.8g $28.33
 HS-5125MG Slim Metal Gear Wing Servo 3.00 3.50 - 24.0g $32.69

Technical Details for TowerPro MG92B Digital 13.8g Mini Servo

Torque @ 4.8V (kg·cm)3.1
Torque @ 6.0V (kg·cm)3.5
Torque @ 7.4V (kg·cm)-
Speed0.13sec/60° @ 5V or 0.08s @ 6V
Bearing TypeDouble
Motor Type-
Dimensions (mm)22.6x35x12
Weight14.0g (0.5oz.)
$8.68
$10.41 inc. VAT
Based on base price of £7.95 inc. VAT
