The AXi 5325/24 is well-known for its excellent performance in modern F3A airframes such as the Vanquish, Krill Spark and Wind S Pro on 10s batteries with 20×13 propellers such as the superb AXi F3A propeller and similar light-weight offerings. This is ultimately a slightly lighter and slightly less powerful version of the 5330/F3A, but whereas the 5330 provides an abundance of power for older and heavier airframes, the 5325/24 really hits the sweet spot in terms of overall weight and performance.

The 5325/24 is the motor of choice for F3A models up to 5kg (176oz), aerobatic models up to 6kg (211oz) and powered gliders up to 10kg (352oz). 12mm prop adaptors are included for front or reverse mounting and an integrated 8mm hardened steel shaft supported by 3 ball bearings provides a robust output for various propeller mounting options when front mounted.

For speed controller settings, click here.

All AXi motors are made by Model Motors in Czech Republic.

Other AXi motors in this series: AXi 5325/16 v2AXi 5325/16 v2 3D Extreme + TelemetryAXi 5325/18 v2AXi 5325/20 v2AXi 5325/20 v2 3D Extreme + Telemetry

Recommended brushless power setups for AXi 5325/24 v2.
Need help finding a brushless motor setup? Try our motor calculator tool.

Model Model Weight Cells Max. Current ESC Propeller
F3A 5000g (176.4oz) 10s 75.0A/20s Hobbywing FlyFun v5 ESCs 110A 6-14s HV Opto 20" x 13"
Aerobatic 6000g (211.6oz) 10s 75.0A/20s Hobbywing FlyFun v5 ESCs 110A 6-14s HV Opto 19" x 12"
Sailplane 10000g (352.7oz) 10s 75.0A/20s Hobbywing FlyFun v5 ESCs 110A 6-14s HV Opto 20" x 13"

Do not exceed the recommended propeller sizes.

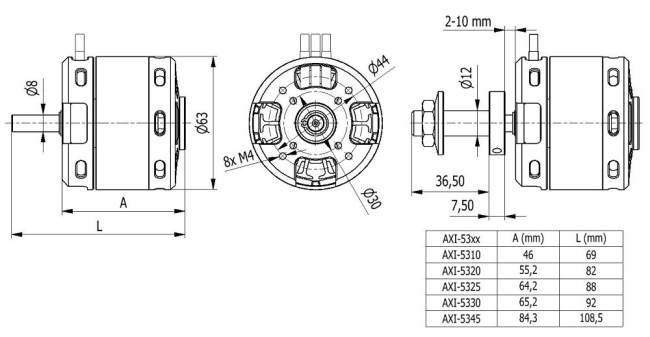

Technical Details for AXi 5325/24 v2

No. of cells (LiPo)10
RPM/V232 Kv
Max. Efficiency91%
No load current1.7A
Maximum Load75.0A
Internal Resistance0.045Ω
Diameter63.00mm (2.48")
Length64.00mm (2.52")
Shaft Diameter8.00mm (0.31")
Max. Efficiency Current12-55A (>85%)
Glow Equivalent22-25ccm/1.3-1.55 -2stroke 1.4 -4stroke 35-45ccm/2.1-2.7 gasoline
Weight606.0g (21.4oz.)
£202.50
£168.75 ex. VAT     £202.50 inc. VAT
in stock
Add to basket
