Stanton Frames TSX220

Clean, simple, strong and FAST! These are a few of the words you will hear to describe the Stanton TSX220 quadcopter! The Stanton Frames TSX220 measures 220mm from corner to corner and accepts up to 5" propellers. This quad frame includes a PDB with 5V regulator which is mounted to a 1.5mm matt carbon-fibre main frame with 3mm arms. Designed for speed around a 1800mAh 4s Li-Po, this is almost the same size as a 180 frame but accepts larger 5" propellers.

This is a strong, well-balanced frame and the included nylon stand-offs help keep the empty frame weight low at just 108g, combined with the X layout this keeps you aerodynamically cleaner in flight, so you can focus on going as fast as possible whilst maintaining plenty of agility.

Included with the kit: -

• 1 x Bottom carbon-fibre plate (1.5mm)
• 1 x Power distribution board (3oz copper with 5v DC regulator)
• 1 x Top plate (1.5mm carbon fibre)
• 4 x Carbon fibre arms (3mm)
• 4 × 7mm nylon standoffs
• 4 × 22mm nylon standoffs
• 4 × 35mm nylon standoffs
• 18 x M3×10 bolts + one spare
• 4 x M3×20mm bolts
• 9 x M3 lock nuts + one spare
• 1 x M3×6 bolt
• 1 x TSX velcro battery strap

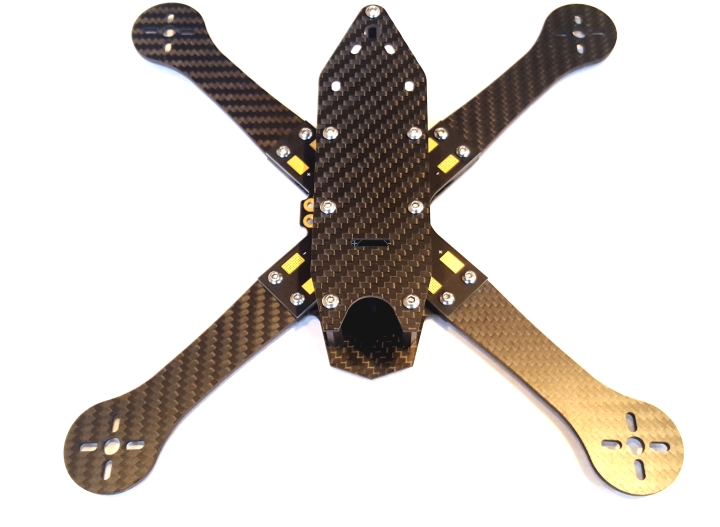

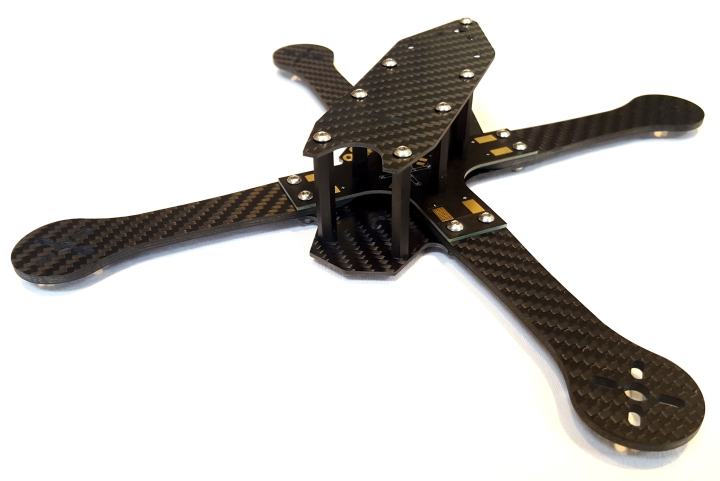

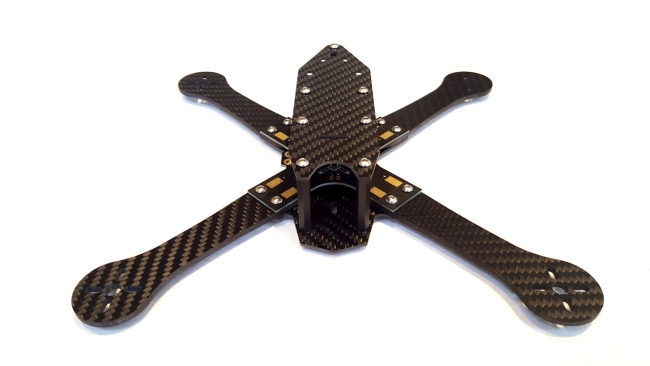

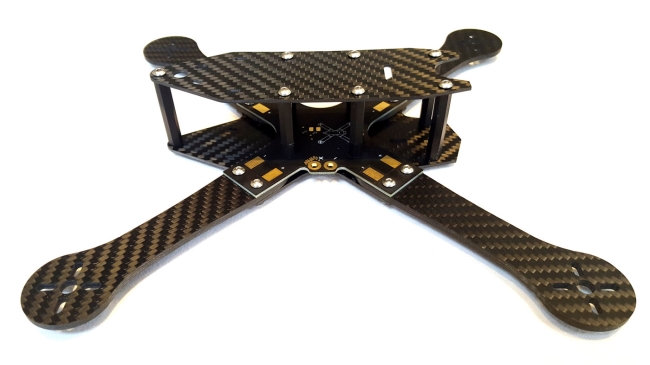

Checkout some great build photos kindly provided by Ultimate RC Workshop.
